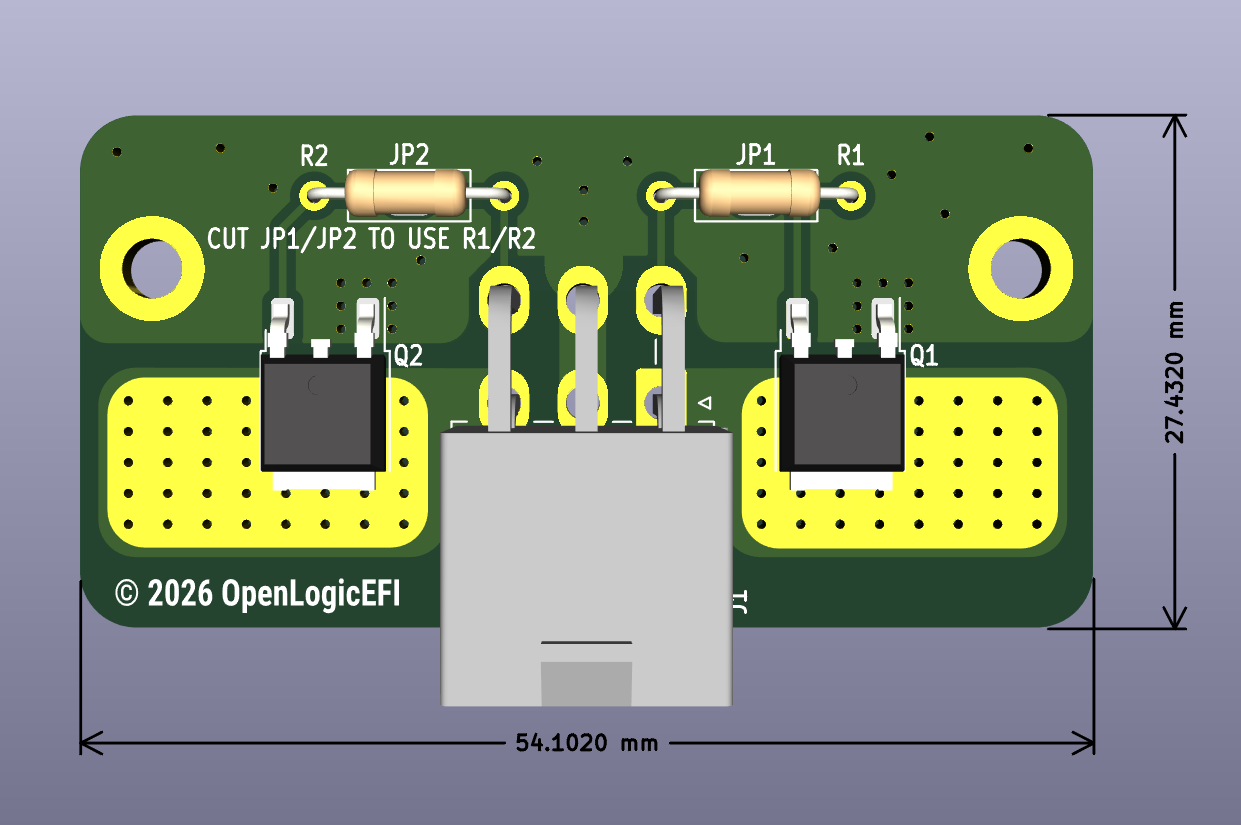

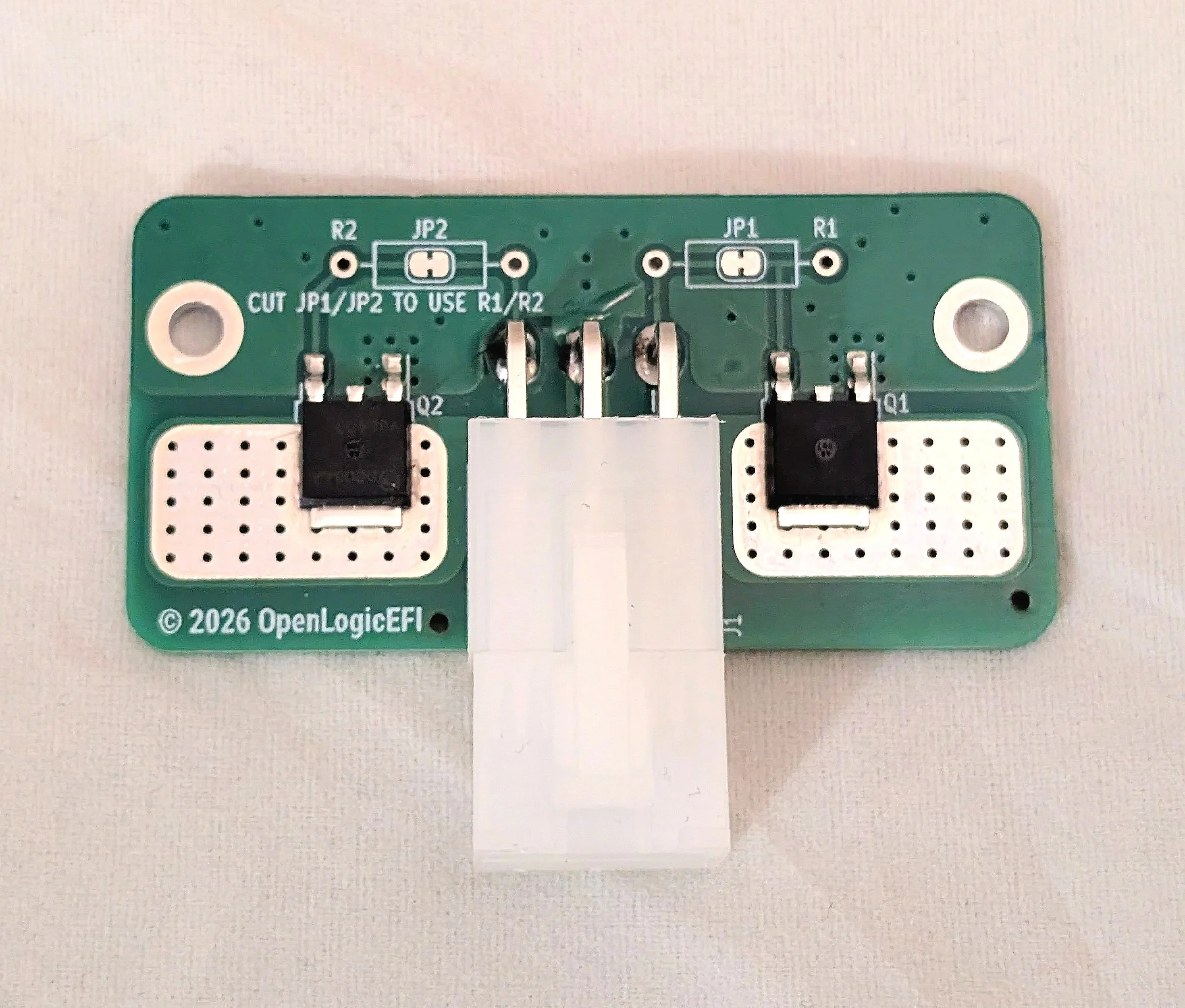

This compact ignition control module is designed to drive two independent passive 2-wire ignition coils, commonly referred to as "dumb coils." Each channel can drive either a single coil or two compatible coils wired in parallel for wasted spark configurations, allowing control of up to four ignition coils total.
The trigger inputs are designed for 5 V logic-level signals only.
Included:
2-Channel Universal ICM
6-pin Mini-Fit Jr connectors
6x crimp terminals
⚠️ Important: This module is intended only for passive ignition coils that require an external ignition driver. Do not use it with smart coils.
