GM Style Intake Air Temperature Sensor IAT - Easy Compatibility

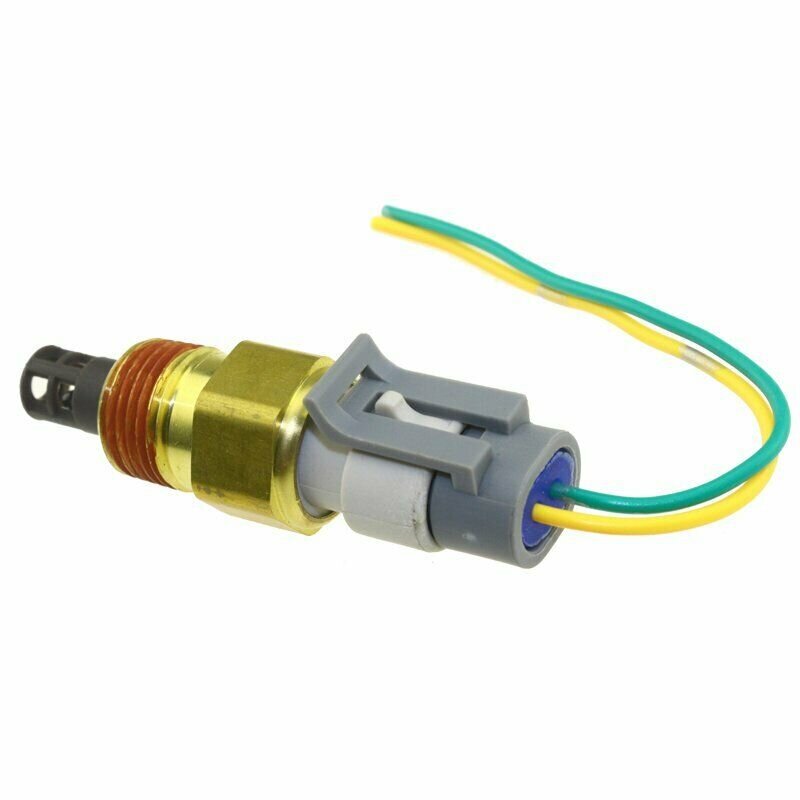

GM Compatible open element IAT Sensor open element with pigtail GM IAT Sensor with open element is the recommended ‘Fast-Response’ Intake Air Temp Sensor (IAT) for use on modified forced induction vehicles. Its fully compatible with Speeduino and many other Standalone ECU's. The threads are 3/8″ NPT pipe thread.
3 point curve calibration Settings for Tuner Studio are as follows:
Temperature - Ohms:
48F - 7000
87F - 1930
146F - 560
Wire Color may vary.
