Pressure Sensor / Transducer – 1/8" NPT (Oil, Fuel ect...)

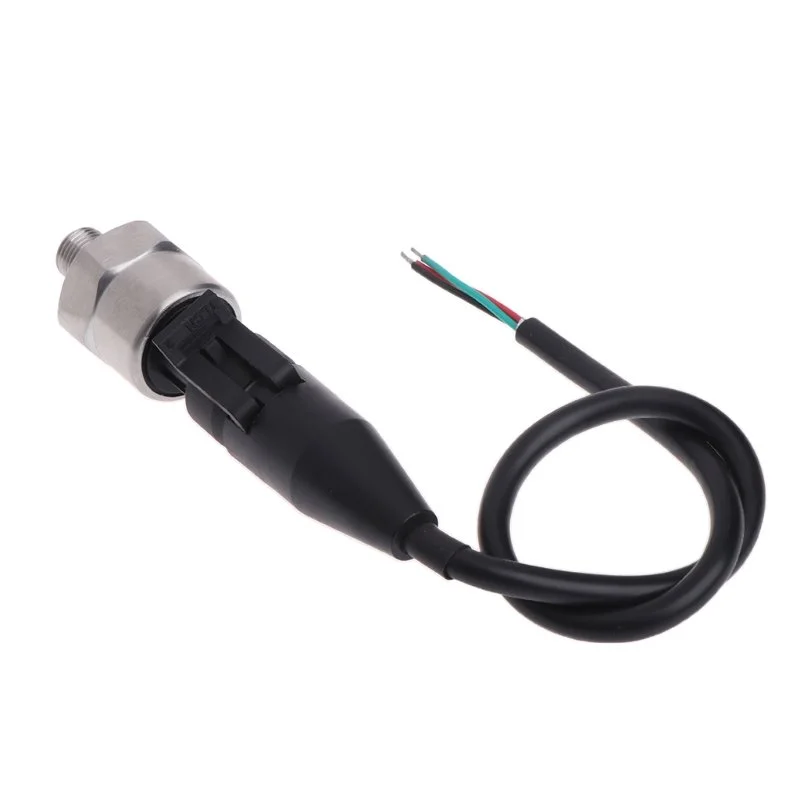

Pressure Transducer with Pigtail:

• Thread: 1/8"-27 NPT

• Linear Voltage Output: 0.5–4.5V

Wiring:

• Red: 5V Supply

• Black: Ground (GND)

• Green: Signal Output

150PSI Sensor Output Characteristics:

• 0 PSI → 0.5V

• 75 PSI → 2.5V

• 150 PSI → 4.5V

200PSI Sensor Output Characteristics:

• 0 PSI → 0.5V

• 100 PSI → 2.5V

• 200 PSI → 4.5V
