Ideal for naturally aspirated applications where a simple and reliable manifold pressure sensor is required.

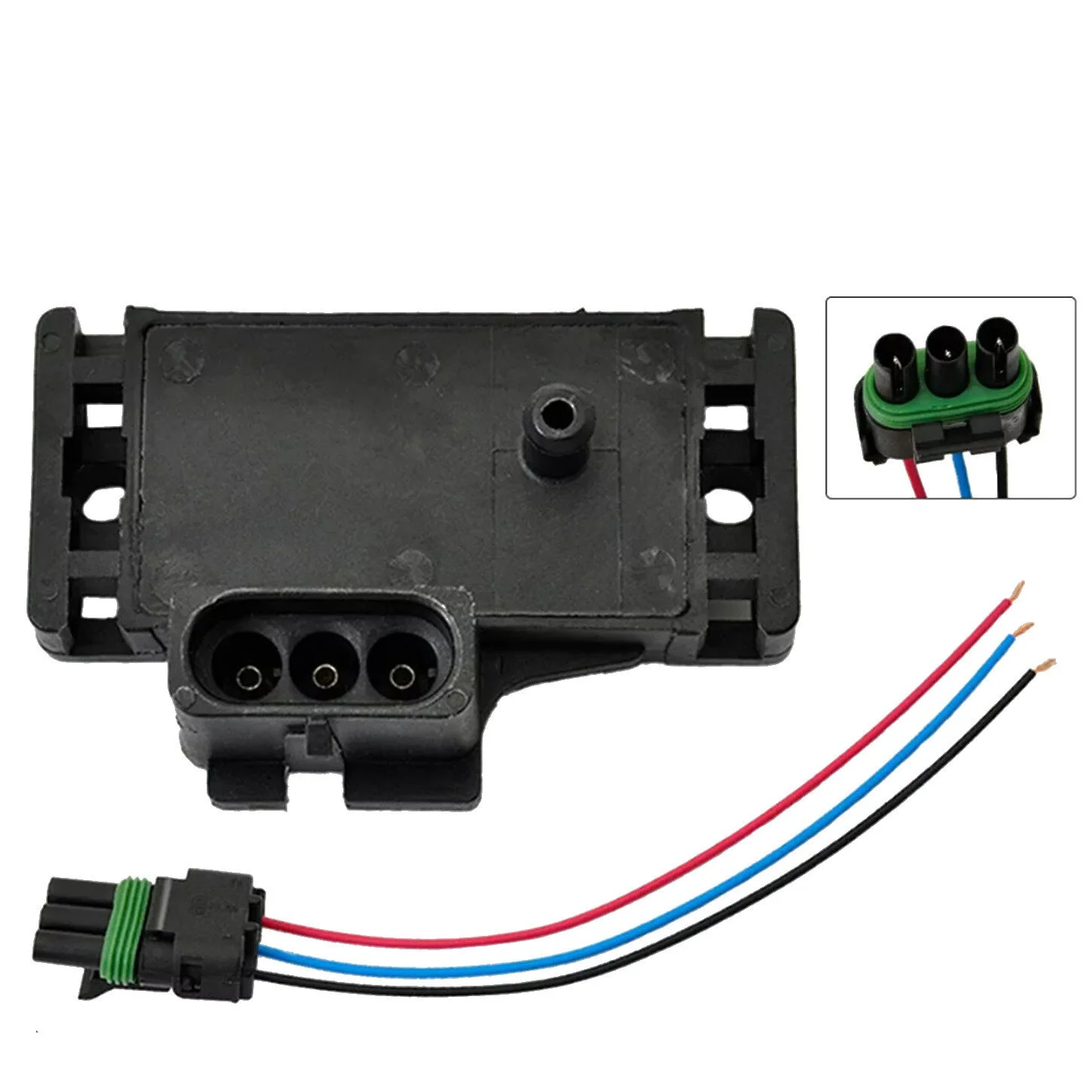

This MAP sensor is a 1-bar sensor designed as a functional replacement for the GM 12569240 style sensor. It is intended for engines that do not run boost, measuring manifold pressure from full vacuum up to atmospheric pressure.
The sensor is fully supported in Speeduino and can be configured directly in TunerStudio by selecting the “GM 1-Bar” MAP sensor option.
Calibration values:
10 kPa = 0 V
105 kPa = 4.9 V
