Spark Gap X4 Standalone Engine Management Kit

from $179.99

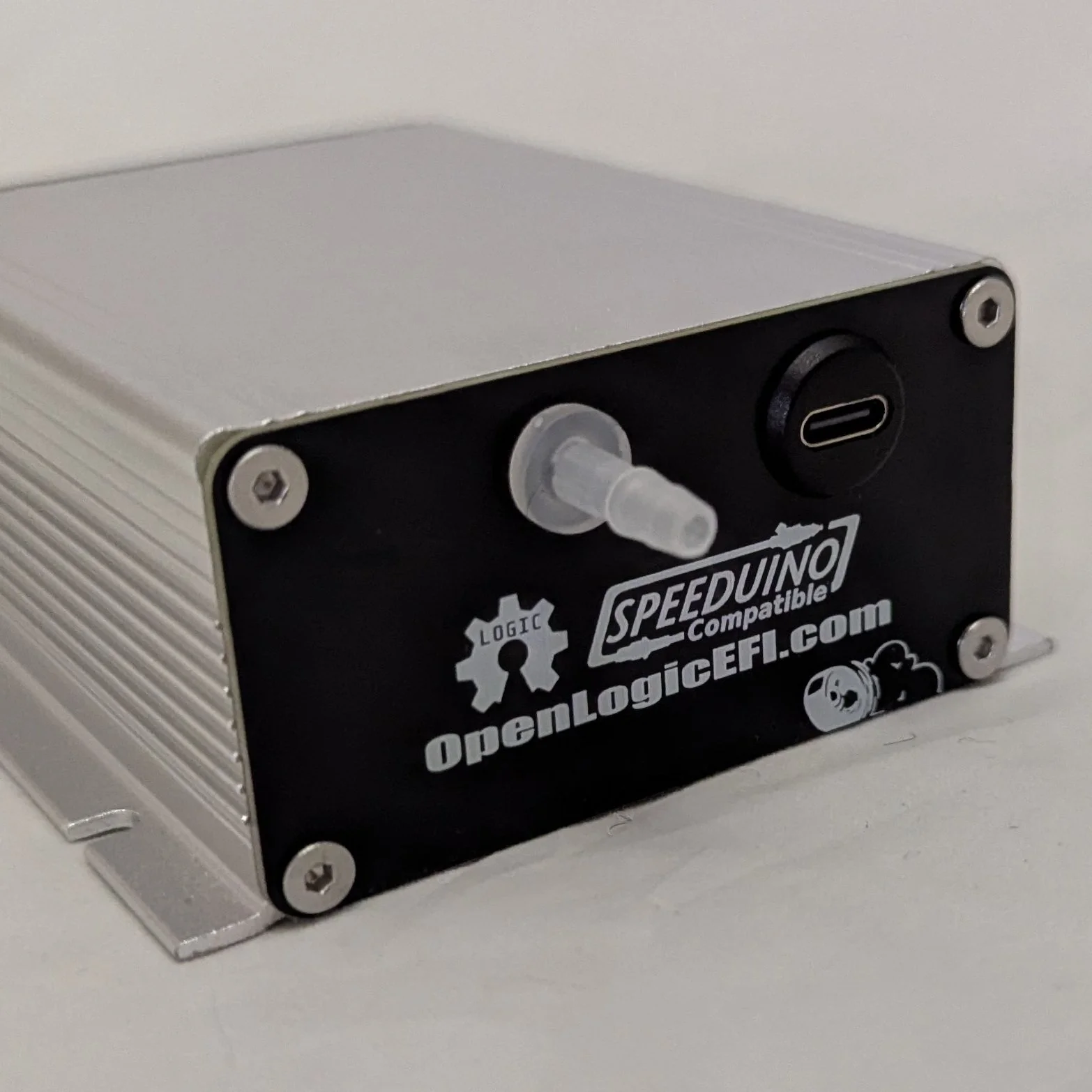

The Spark Gap X4 is a compact standalone engine management kit designed around the open-source Speeduino platform. It includes an assembled ECU, enclosure, harness-side connectors and pins, and a pre-flashed ATmega2560-based controller.

The hardware and firmware support engines with up to 8 cylinders and provide a range of inputs, outputs, and expansion options in a compact, cost-effective package.

Detailed hardware features and specifications are listed below.

MAP Sensor:

The Spark Gap X4 is a compact standalone engine management kit designed around the open-source Speeduino platform. It includes an assembled ECU, enclosure, harness-side connectors and pins, and a pre-flashed ATmega2560-based controller.

The hardware and firmware support engines with up to 8 cylinders and provide a range of inputs, outputs, and expansion options in a compact, cost-effective package.

Detailed hardware features and specifications are listed below.

Dual VR Conditioner (NCV1124) Speeduino Compatible
Dual VR Conditioner (NCV1124) Speeduino Compatible
Sale Price: $19.99 Original Price: $24.99

Included:

  • Assembled Spark Gap X4 ECU.

  • Harness-side connectors and pins.

  • Arduino Mega 2560 "Pro" pre-flashed with Speeduino firmware.

  • Aluminum enclosure with end caps.


Engine Compatibility:

  • 1–4 cylinders: Supports full sequential fuel injection and ignition, as well as wasted-spark configurations, with compatible triggering.

  • 5, 6, and 8 cylinders: Grouped fuel injection with supported wasted-spark or distributor ignition configurations.

  • Rotary engines: Supports leading and trailing ignition configurations.

  • 2-stroke engines: Supports compatible 2-stroke configurations.

For additional information on supported configurations and trigger requirements, see the Speeduino Wiki.

Hardware Feature List:

  • 4 × Fuel Injector Outputs

  • 4 × Ignition Signal Outputs (selectable 5V or 12V, 100mA max per channel)

  • 4 × Preconfigured Analog Inputs (CLT, IAT, TPS, O2)

  • 2 × Configurable Analog Inputs (e.g., oil pressure, fuel pressure)

  • Up to 3 × Buffered Trigger Inputs (crankshaft and dual camshaft position, compatible with 5V and 12V square-wave signals)

  • Up to 4 × Digital Inputs (e.g., flex fuel, vehicle speed, clutch switch)

  • Mounting Provision for Dual-Channel VR Conditioner (not included)

  • Onboard Footprint for MPXH-Series MAP Sensor (sensor options selectable above)

  • Onboard Barometric Pressure Sensor (real-time atmospheric compensation)

  • Mounting Provision for DRV8825 Stepper Driver (idle valve control, driver not included)

  • 8 × Digital Outputs (3 × 1.2A max | 4 × 400mA max | 1 × 800mA max) for idle, boost, VVT, fuel pump, fan, relay control, etc.

  • Dedicated Tachometer Output

  • 2 × Serial Headers (Serial0 and Serial3) for Bluetooth, Wi-Fi, or other serial devices

  • USB-C Port (rear-mounted, automatically disables Serial0 when USB is connected)


Spark Gap x4 Pinout

Open-Source Hardware and Firmware: The Spark Gap X4 uses open-source hardware and is compatible with official Speeduino firmware. Hardware documentation and schematics are publicly available on GitHub.

Community and Resources: Speeduino has an active open-source community with documentation, forums, and other resources available for configuration and troubleshooting.

Tested Before Shipping: Each ECU is assembled and tested before shipping to verify proper hardware operation.
